U-S3-Rx
134.00 €
Two-wire 4...20mA converter of voltage from redox probe

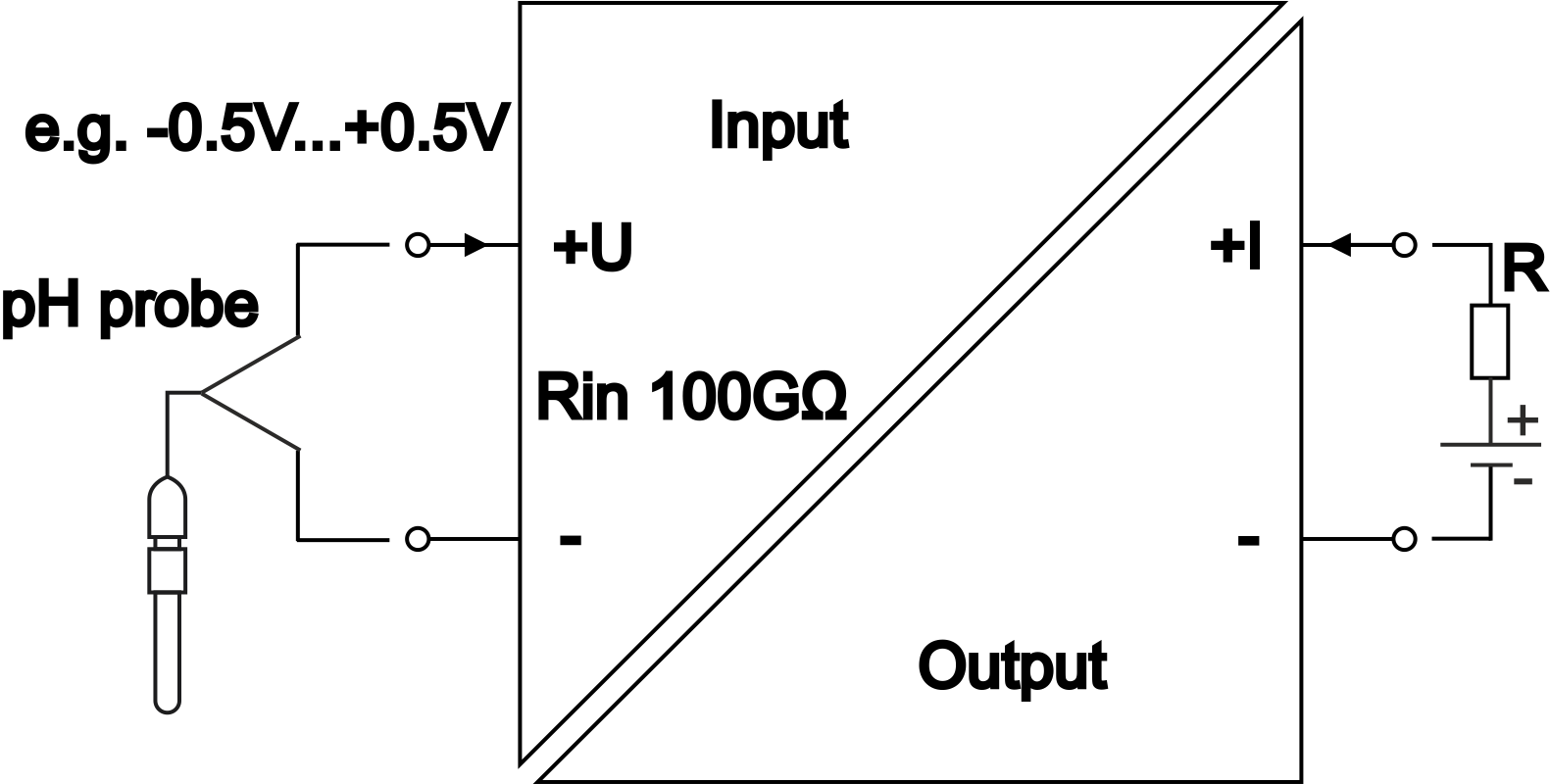

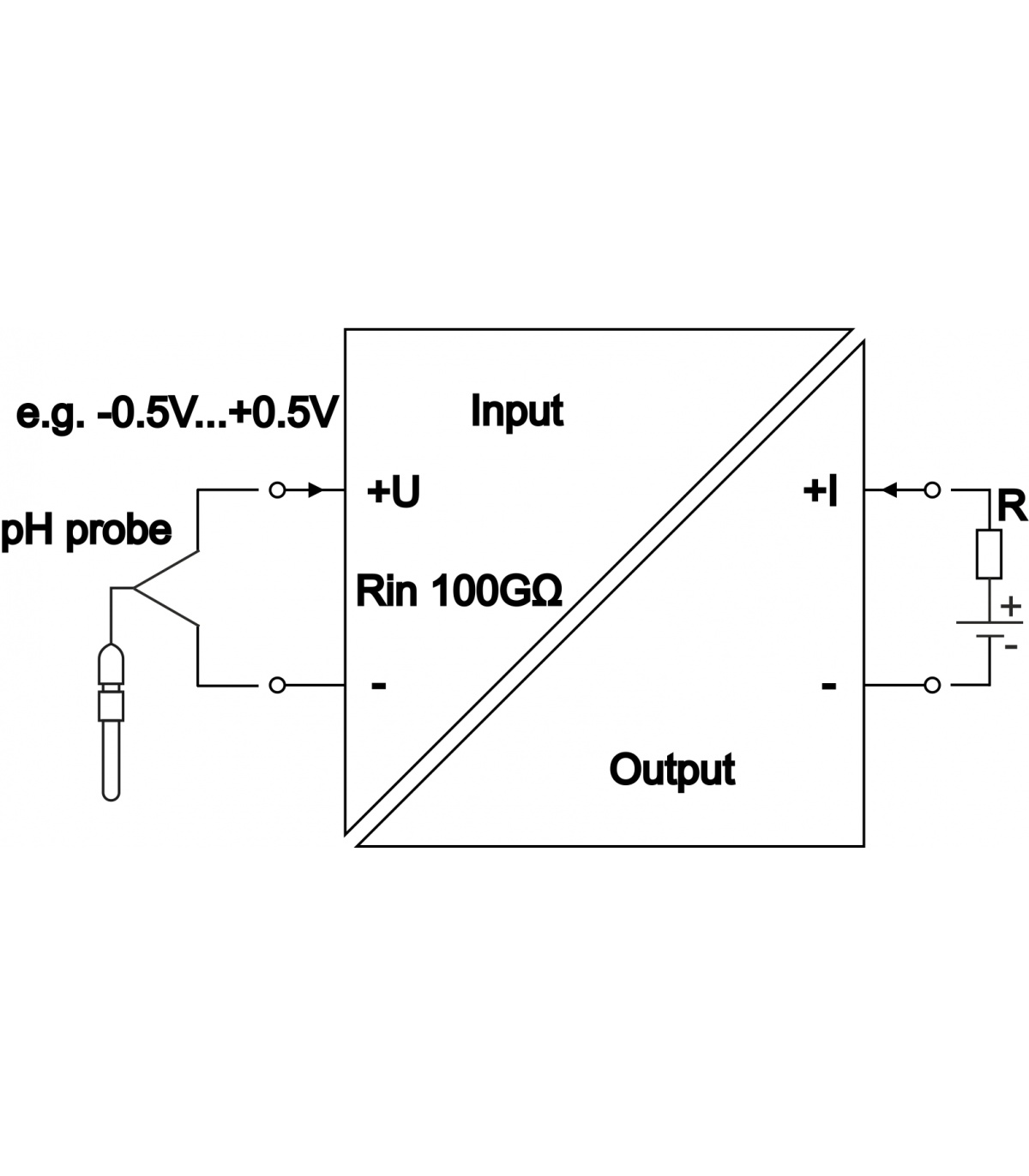

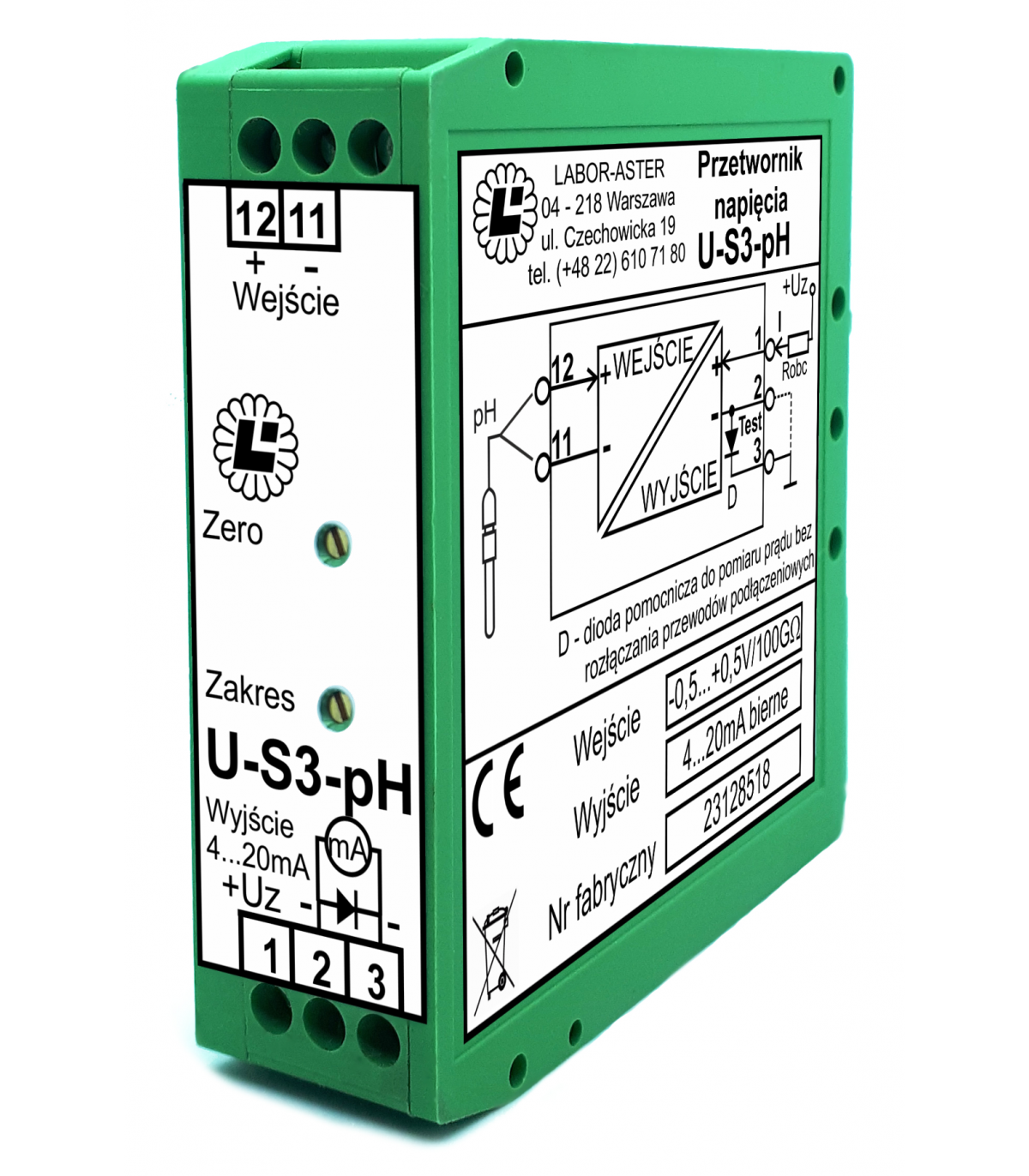

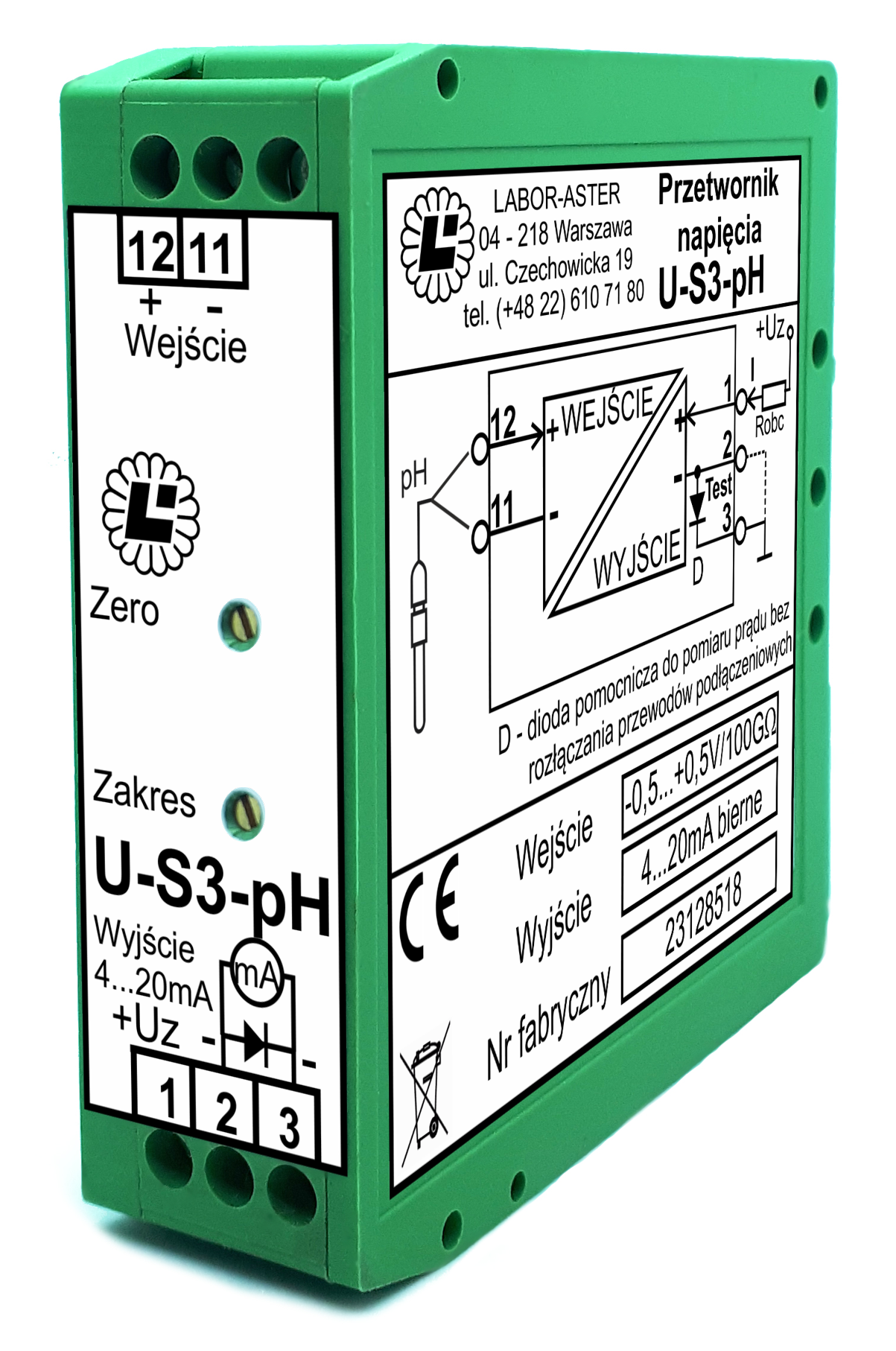

U-S3-pH
Two-wire 4...20mA converter of voltage from pH probe
134.00 €
Input:
- Voltage signal from a pH probe e.g. type PHES-112-SE from Prominent (±0,5VDC etc.).
Output:
- Control of a 4...20mA current loop.
Power supply:
- Converter supplied from the output.
Additional information:
- To control measurement of acidity or alkalinity of an aqueous solution, e.g. swimming pool water.
- Input and output circuits galvanically separated from each other.
- 1 channel in rail housing.
- More information in: DATASHEET (download).
