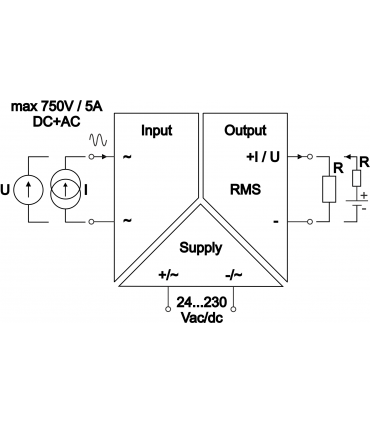

Input:

• Measurement of RMS for current I≤5A_AC or voltage U≤750V_AC.
• Any shape DC+AC, 0...5kHz.

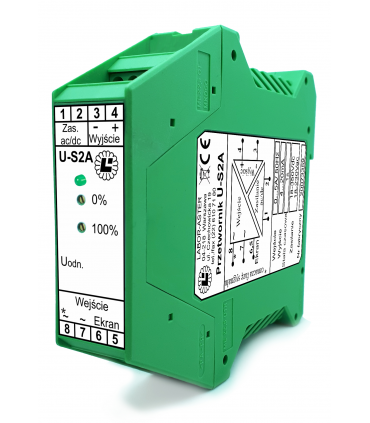

• Measurement of only AC with DC cut off possible on module: U-S2A for cathodic protection.

Output:

• Any standard signal as ordered (0...10V, 0/4...20mA etc.).

Power supply:

• Universal 18÷230V_AC or 18÷350V_DC.

Additional information:

• Class 1% for 5kHz.
• Input, output and power supply circuits galvanically separated from each other.
• 1 channel in rail housing.
• More information in: DATASHEET (download).
