U-S2A for cathodic protection
150.00 €
RMS current or voltage AC converter for cathodic protection, with DC cut off

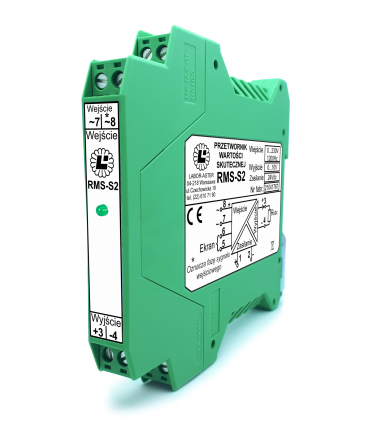

RMS-S2 for cathodic protection
RMS current or voltage AC converter for cathodic protection, with DC cut off, adjustable time constant and processing function
206.00 €

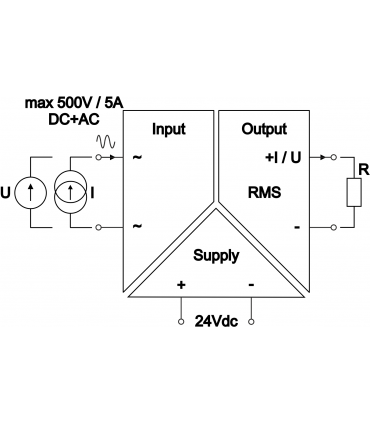

Input:
- Voltage signal e.g. 0...60mVac, 0...5Vac, 0...10Vac etc. or internal shunt current e.g. 0...1Aac (max 5A).
- Any shape AC, 0...10kHz, with DC cut off
- Input resistance ≥ 10MΩ.
Output:
- Any standard signal as ordered (0...10V, 0/4...20mA etc.).
Power supply:
- 24VDC.
Additional information:
- Settable time constant (0,1s, 0,5s, 2s) and converting function (RMS, rectified average value, average value).
- Class 1% for 10kHz.
- Input, output and power supply circuits galvanically separated from each other.
- 1 channel in rail housing.
- More information in: DATASHEET (download).
