RMS current or voltage AC+DC converter

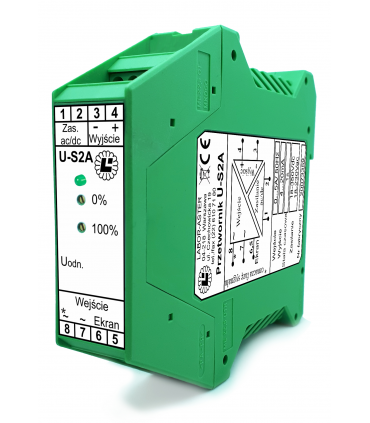

U-S2A for cathodic protection

RMS current or voltage AC converter for cathodic protection, with DC cut off

515.00 PLN
VAT excluded

Description

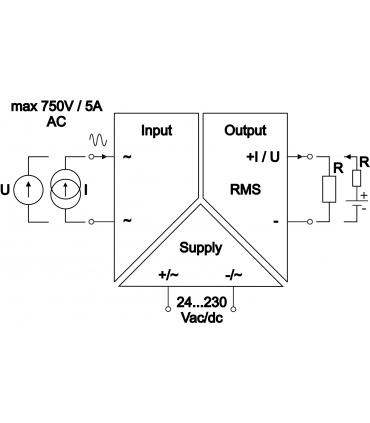

Input:

  • Measurement of RMS for current I≤5AAC or voltage U≤750VAC.
  • Any shape AC, 0...5kHz, with DC cut off.
  • Input resistance ≥ 10MΩ.

Output:

  • Any standard signal as ordered (0...10V, 0/4...20mA etc.).

Power supply:

  • Universal 18÷230VAC or 18÷350VDC.

Additional information:

  • Class 1% for 5kHz.
  • Input, output and power supply circuits galvanically separated from each other.
  • 1 channel in rail housing.
  • More information in: DATASHEET (download).
