BF-S2
171.00 €
Arithmetic-logic function block on analog and bistate signals with circuit separation

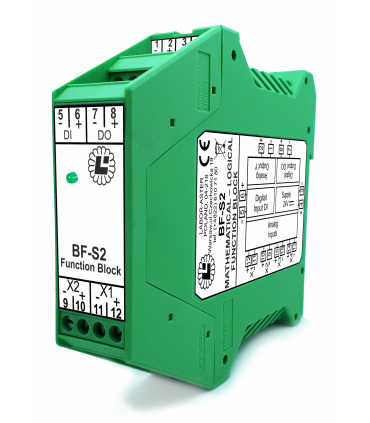

BF-S2 adder
Adder block of analog signals with circuits separation
171.00 €

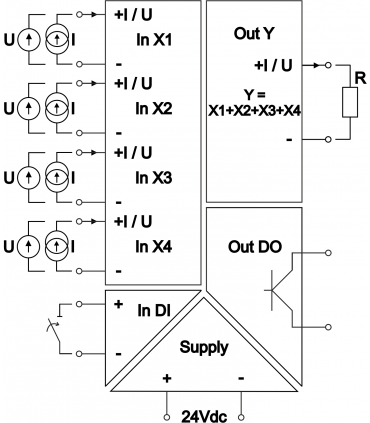

Inputs:
- 4 any standard signals as ordered (0...10V, 0/4...20mA etc.).
- 1 bistate input.
Output:
- 1 any standard signal as ordered (0...10V, 0/4...20mA etc.) processing the sum of the input signals.
- 1 bistate output
Power supply:
- 24VDC.
Additional information:
- Inputs, output and power supply circuits galvanically separated from each other.
- 1 channel in rail housing.
- More information in: DATASHEET (download).
