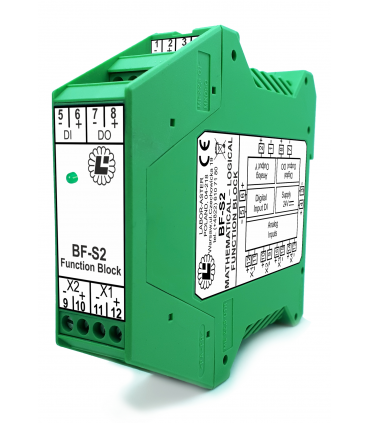

BF-S2 differential (df/dt-S2)

Analog signal differential block with circuits separation

189.00 €



  • Any standard signal as ordered (0...10V, 0/4...20mA etc.).


  • Any standard signal processing below function:

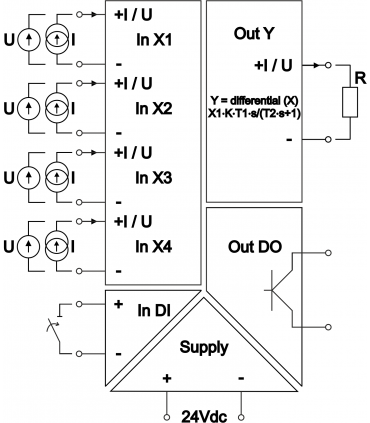

    Signal_output = Signal_input ⋅ K ⋅ T1 ⋅ s / ( T2 ⋅ s + 1 )
    s - operator,
    K - agreed factor regulated with potentionmeter,
    T1, T2 - time constants.

Power supply:

  • 24VDC.

Additional information:

  • Input, output and power supply circuits galvanically separated from each other.
  • 1 channel in rail housing.
  • More information in: DATASHEET (download).
