Input:

• Universal: 0/4...20mA, 0...10V or any signal according to the order.
• Auxiliary power supply voltage for a two-wire transmitter.

Outputs:

• One or two opto-relay or OC outputs.

Power supply:

• 24V_DC.

Additional information:

• Programmable via USB:

  • - device function (conversion of the input analog signal to: pulse frequency, PWM or threshold indication) and its parameters,
  • - 3 time constants to choose.
• Thin housing with a width of 6.5mm.
• Input, output and power supply circuits galvanically separated from each other.

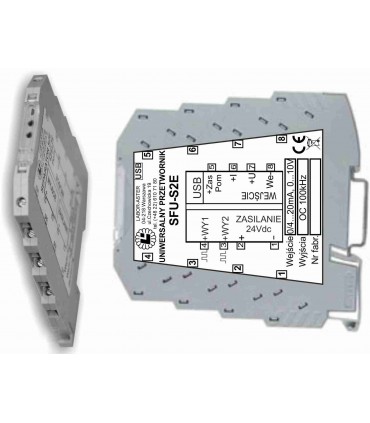

• 1 channel in rail housing.
• More information in: DATASHEET (download).
