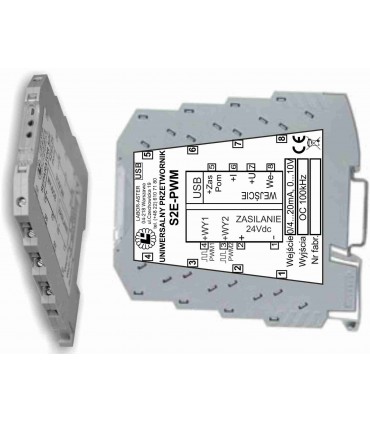

Converter of any standard signal to PWM duty cycle, 2 outputs, programmable via USB
119.00 €
Input:
- Universal: 0/4...20mA, 0...10V or any signal according to the order.
- Auxiliary power supply voltage for a two-wire transmitter.
Outputs:
- One or two opto-relay or OC outputs.
Power supply:
- 24VDC.
Additional information:
- Programmable via USB:
- - the beginning and the end of input signal range,
- - the beginning and the end of output signal duty cycle range,
- - frequency of output PWM signal,
- - 3 time constants to choose.
- Thin housing with a width of 6.5mm.
- Input, output and power supply circuits galvanically separated from each other.
- 1 channel in rail housing.
- More information in: DATASHEET (download).
