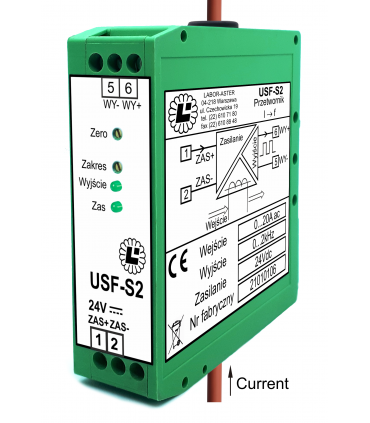

Converter of high current signal to pulse frequency
141.00 €

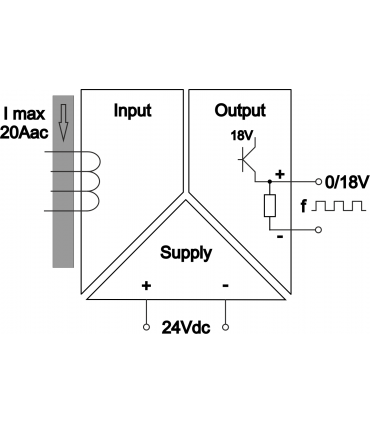

Input:
- Current from range from 0 to 2...20Aac.
Output:
- Square wave signal with a frequency from range 0...2kHz.
- Fixed-width pulses e.g. 100us or other as ordered.
- Amplitude e.g. 0/18VDC or other as ordered.
Power supply:
- 24VDC.
Additional information:
- Input, output and power supply circuits galvanically separated from each other.
- 1 channel in rail housing.
- More information in: DATASHEET (download).
