Input:

• Any standard signal as ordered (0...10V, 0/4...20mA etc.).

Output:

• Square wave signal with a frequency typically 0...10kHz (duty cycle 50% or fixed-width pulses, e.g. 1ms).
• PNP, NPN (OC) or voltage, e.g. 0/24 V_DC.

Power supply:

• 24V_DC or 230V_AC.

Additional information:

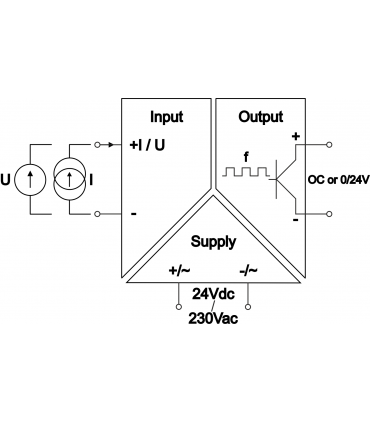

• Input, output and power supply circuits galvanically separated from each other.

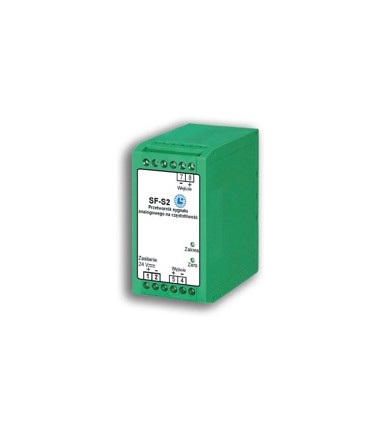

• 1 channel in rail housing.
• More information in: DATASHEET (download).
