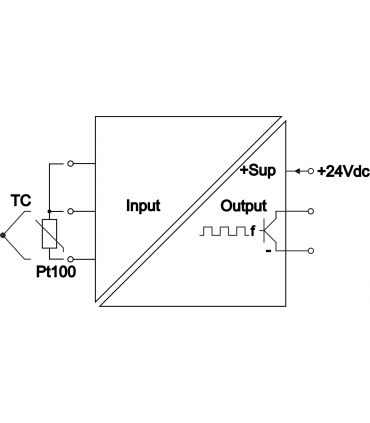

Input:

• Pt100, Ni100, Cu50, Cu100, potentiometer position, other resistance sensors, thermocouple.
• 2- or 3-wire connection.

Output:

• Signal in the form of a square wave with typical frequency 0...1kHz (optional10Hz, 100Hz, 2kHz).
• PNP, NPN (OC).

Power supply:

• 24V_DC.

Additional information:

• Input circuit galvanically separated from output and power supply circuits. Common ""-" terminal for output and power supply circuits.

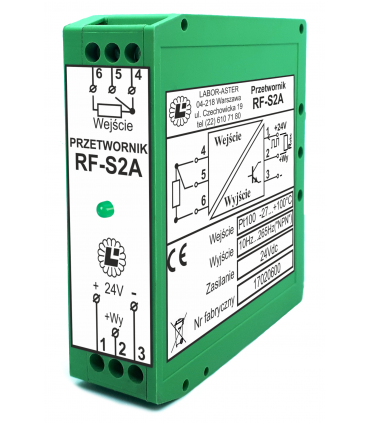

• 1 channel in rail housing.
• More information in: DATASHEET (download).
