Input:

• PWM with amplitude 1...24V and frequency 100Hz...100kHz.
• Auxiliary power supply voltage max 18V_DC.

Output:

• Output option:
  • - one analog output + one bistate output transmitting PWM,
  • - two bistate outputs transmitting PWM (duplicator).

Power supply:

• 24V_DC or 230V_AC.

Additional information:

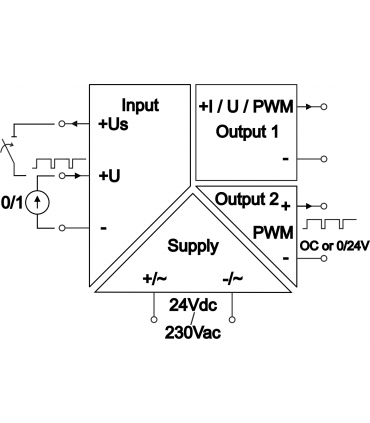

• Input, output and power supply circuits galvanically separated from each other.
• 1 channel in rail housing.
• More information in: DATASHEET (download).
