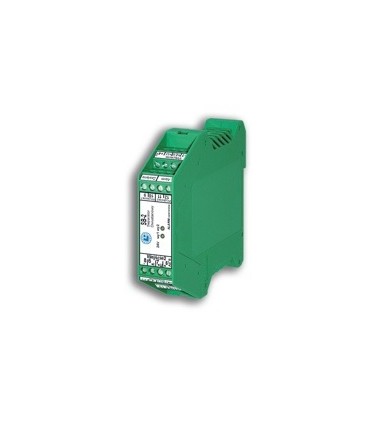

Machine motion indicator, up to 2 channels
127.00 €

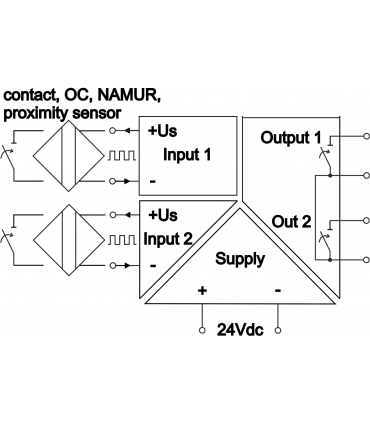

Inputs:
- Proximity NAMUR sensor, closing non-potential contact, transistor switch OC, Hall sensor.
- Frequency range 0...400Hz.
Outputs:
- Relay or opto-relay contacts with one common terminal.
Power supply:
- 24VDC.
Additional information:
- Note: the module does not recognize the frequency above 400Hz. For the frequency above 400Hz the module will decide that the frequency is 0Hz and will signal lack of movement.
- Input, output and power supply circuits galvanically separated from each other. Outputs have common terminal.
- 1 or 2 channels in one rail housing.
- More information in: DATASHEET (download).
