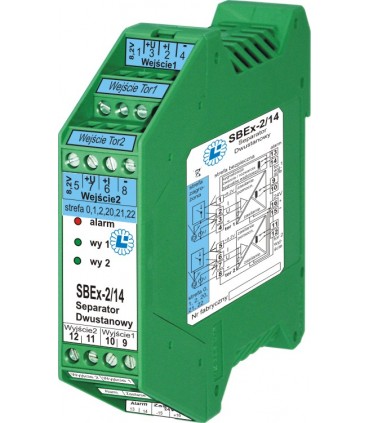

SBEx-2 liquid sensor

Bistate (binary) separator to operate with liquid level reflective sensor,  with intrinsically safe barrier Ex Atex, 1 or 2 channels

Description

Intrinsically safe input:

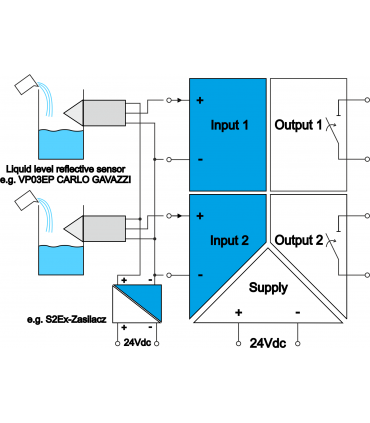

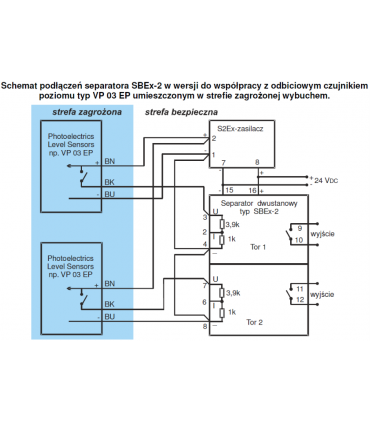

  • Liquid level reflective sensor based on sensor from CARLO GAVAZZI type VP 03 EP.

Non-intrinsically safe output:

  • Relay contacts.

Power supply:

  • 24VDC.

Additional information:

  • Switcher-selected phase of output relays activation.
  • Explosion-proof construction designation:
    • I(M1) [Ex ia] I;
    • II(1) G [Ex ia] IIC;
    • II (1) D [Ex ia] IIIC.
  • Input, output and power supply circuits galvanically separated from each other.
  • 1 or 2 channels in one rail housing.
  • More information in: DATASHEET (download).
