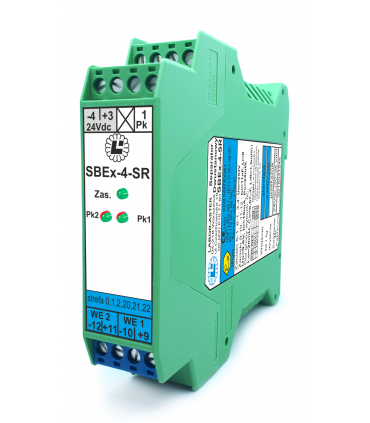

SBEx-4-SR

Machine motion indicator with intrinsically safe Ex Atex barrier, for signals type contact, OC, 1 or 2 channels

550.00 PLN
VAT excluded
Channels number (affects the price)
  • 1 channel
  • 2 channels

Description

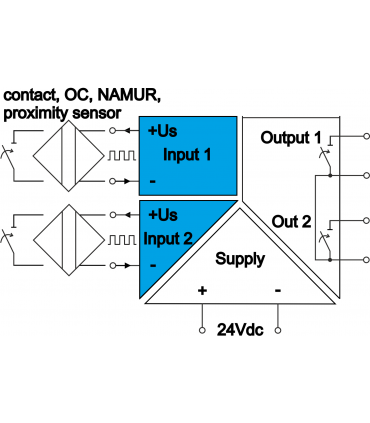

Intrinsically safe inputs:

  • Proximity sensor, NAMUR standard, closing non-potential contact, transistor switch NPN, PNP OC, current or voltage signals, pressure switch after agreement.
  • Auxiliary voltage supply.
  • Frequency range 0...1kHz.

Non-intrinsically safe outputs:

  • Relay or opto-relay contacts with one common terminal.

Power supply:

  • 24VDC.

Additional information:

  • Switcher-selected phase of output relays activation.
  • Explosion proof designation:
    • I(M1) [Ex ia] I;
    • II(1) G [Ex ia] IIC;
    • II (1) D [Ex ia] IIIC.
  • Input, output and power supply circuits mutually galvanically separated. Outputs have common terminal.
  • 1 or 2 channels in one rail housing.
  • More information in: DATASHEET (download).
