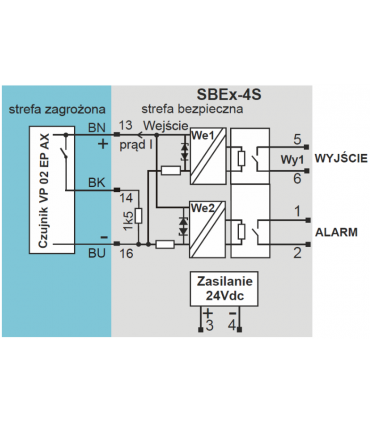

Intrinsically safe input:

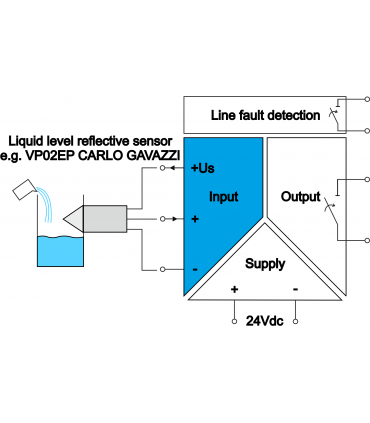

• Liquid level reflective sensor based on sensor from CARLO GAVAZZI type VP 02 EP.
• Auxiliary voltage supply.

Non-intrinsically safe output:

• Opto-relay contacts.

Power supply:

• 24V_DC.

Additional information:

• Alarm indication of damage in the sensor line.
• Switcher-selected phase of output relays and ALARM signal activation.
• Explosion-proof construction designation:

  • I(M1) [Ex ia] I;
  • II(1) G [Ex ia] IIC;
  • II (1) D [Ex ia] IIIC.
• Input, output and power supply circuits galvanically separated from each other.
• 1 channel in rail housing.
• More information in: DATASHEET (download).
