RD

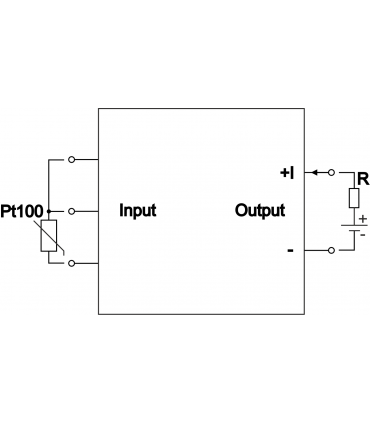

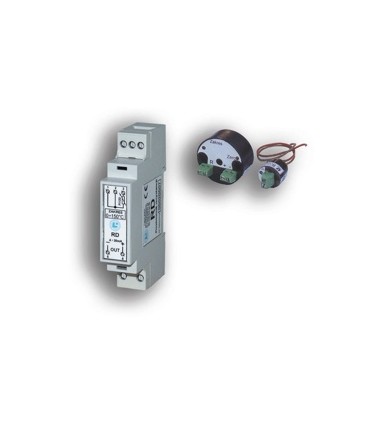

Two-wire temperature, resistance converter, 2- or 3-wire connection, without separation

46.00 €

Description

Input:

  • Pt100, Pt500, Pt1000, Cu50, potentiometer position, other resistance sensors.
  • 2- or 3-wire connection.

Output:

  • Control of a 4...20mA current loop.

Power supply:

  • Converter supplied from the output.

Additional information:

  • Converter without separation.
  • 1 channel in rail housing.
  • More information in: DATASHEET (download).
