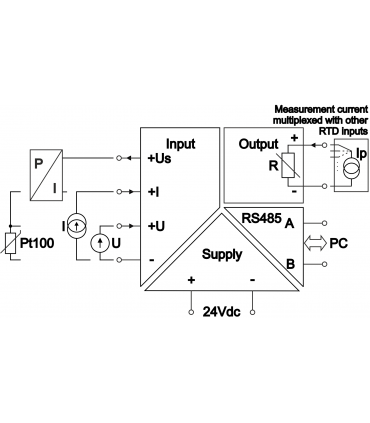

Input:

• Universal (standard signals 0/4...20mA, 0...10V, auxiliary voltage for a two-wire transmitter or as ordered).
• Resistance RTD, e.g. Pt100 (2- or 3-wire connection).

Output:

• Simulated resistance (as ordered from range 60Ω...2kΩ), e.g. Pt100.
• Limitation: Up=Rout·Ip<2.4V.
• Minimal conversion time of simulated resistance - 60ms.

Power supply:

• 24V_DC.

Additional information:

• Setting / reading via RS485 MODBUS RTU.
• Input, output and power supply circuits galvanically separated from each other.

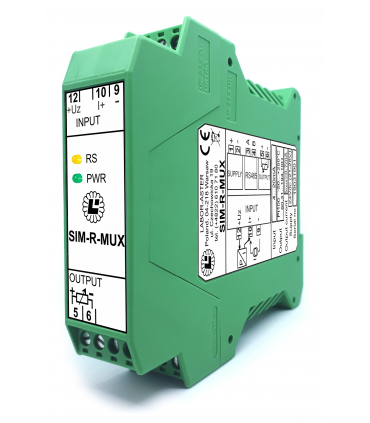

• 1 channel in rail housing.
• More information in: DATASHEET (download).
• Technical details, explanation of the measuring current, use as a Pt100 multiplier: Resistance simulator - what should you know.
