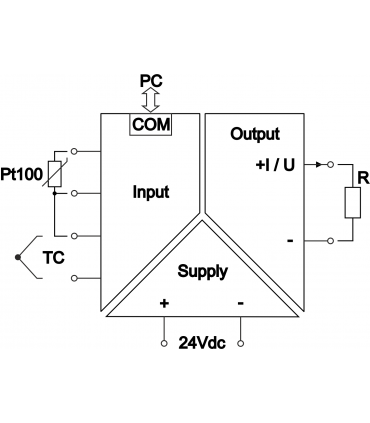

Input:

• Programmable sensor type and range.
• Pt100, Ni100; 2- or 3-wire connection.
• Thermocouples J, K, S, T, B, N with selection of the cold endings compensation type.

Output:

• Programmable standard signal (0...10V, 0/4...20mA).

Power supply:

• 24V_DC.

Additional information:

• Cable for programming sold separately: Cable RS232 DB9-RJ11 (labor-automatyka.pl).
• Input, output and power supply circuits galvanically separated from each other.
• 1 channel in rail housing.
• More information in: DATASHEET (download).
