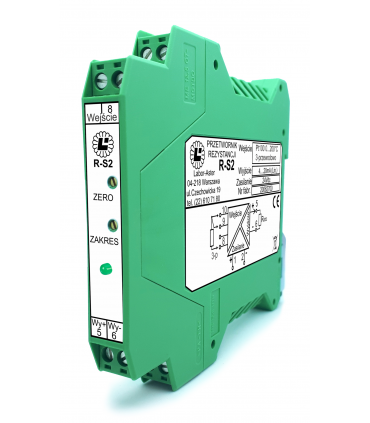

R-S2

Temperature, resistance converter

410.00 PLN
VAT excluded

Description

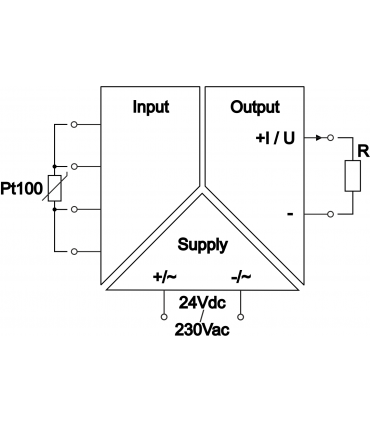

Input:

  • Pt100, Pt500, Pt1000, Ni100, Cu50, potentiometer position, other resistance sensors.
  • 2-, 3- or 4-wire connection.

Output:

  • Any standard signal as ordered (0...10V, 0/4...20mA etc.).

Power supply:

  • 24VDC or 230VAC.

Additional information:

  • Input, output and power supply circuits galvanically separated from each other.
  • 1 channel in rail housing.
  • More information in: DATASHEET (download).
