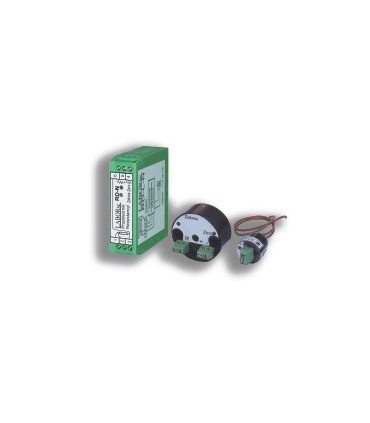

RD1

Two-wire temperature, resistance converter, 2- or 4-wire connection, without separation

263.00 PLN
VAT excluded

Description

Input:

  • Pt100, Pt500, Pt1000, Cu50, potentiometer position, other resistance sensors.

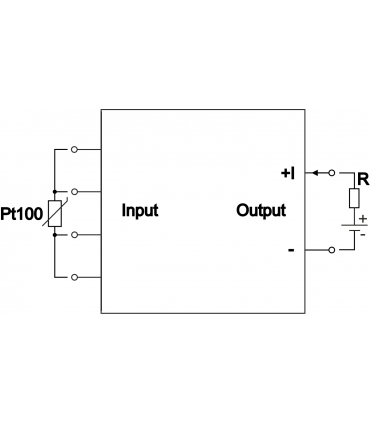

  • 2- or 4-wire connection.

Output:

  • Control of a 4...20mA current loop.

Power supply:

  • Converter supplied from the output.

Additional information:

  • Converter without separation.
  • 1 channel in rail housing.
  • More information in: DATASHEET (download).
