U-S3-OK-uV
124.00 €
Two-wire 4...20mA converter of small current, voltage, e.g. for cathodic protection
U-S3-OK
Two-wire 4...20mA converter of voltage for cathodic protection
93.00 €

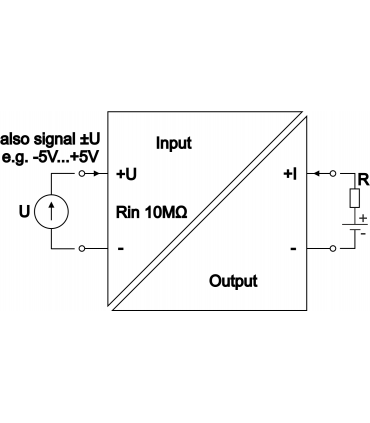

Input:
- Voltage, also with polarization ± (e.g. 0÷2,5VDC, ±5VDC etc.).
Output:
- Control of a 4...20mA current loop.
Power supply:
- Converter supplied from the output.
Additional information:
- To control the actual value of the potential of metal structures during cathodic polarization.
- Input and output circuits galvanically separated from each other.

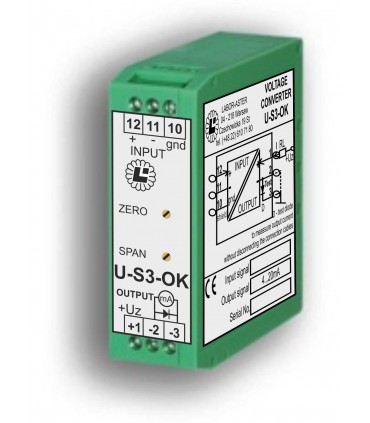

- 1 channel in rail housing.
- More information in: DATASHEET (download).
