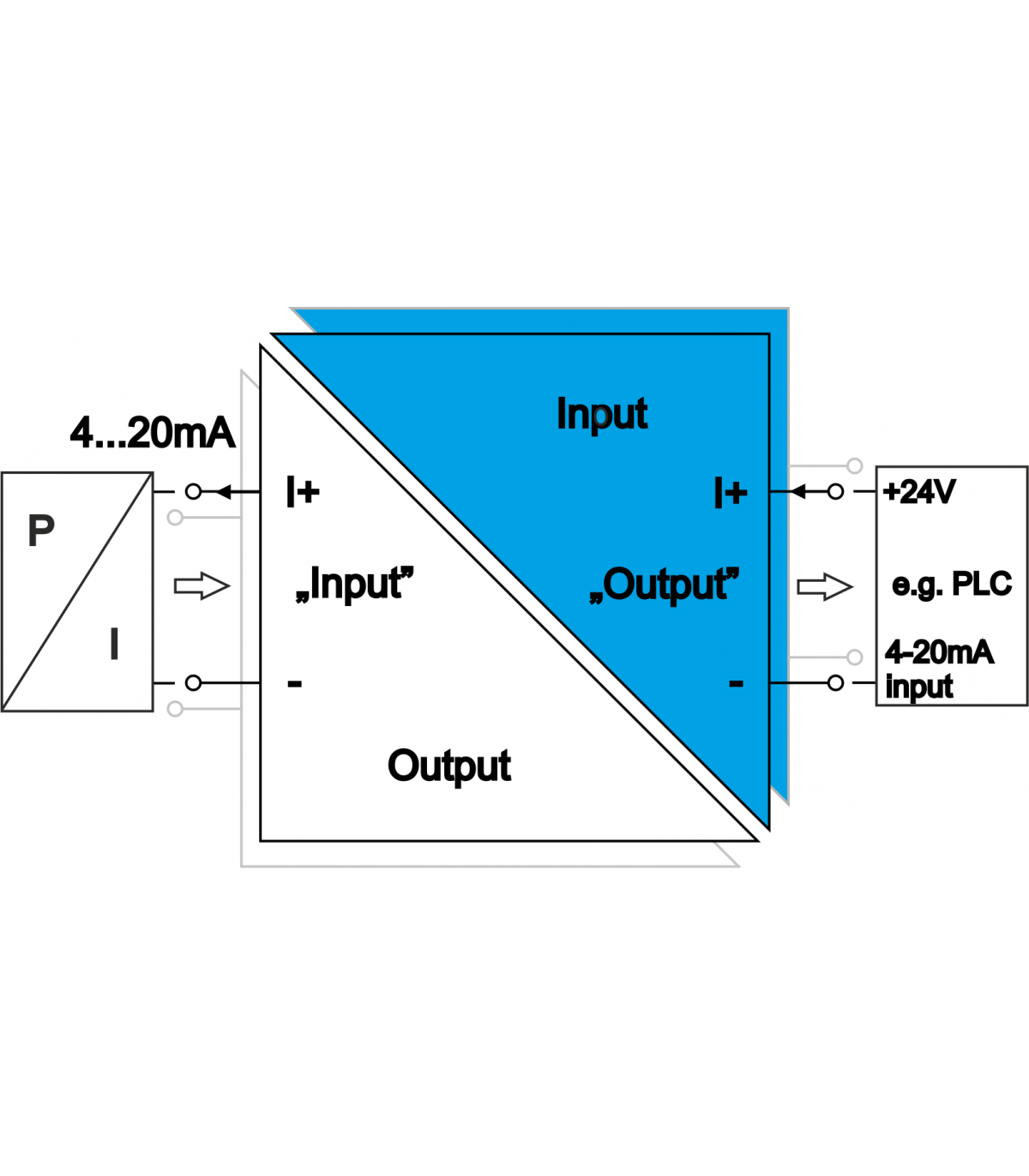

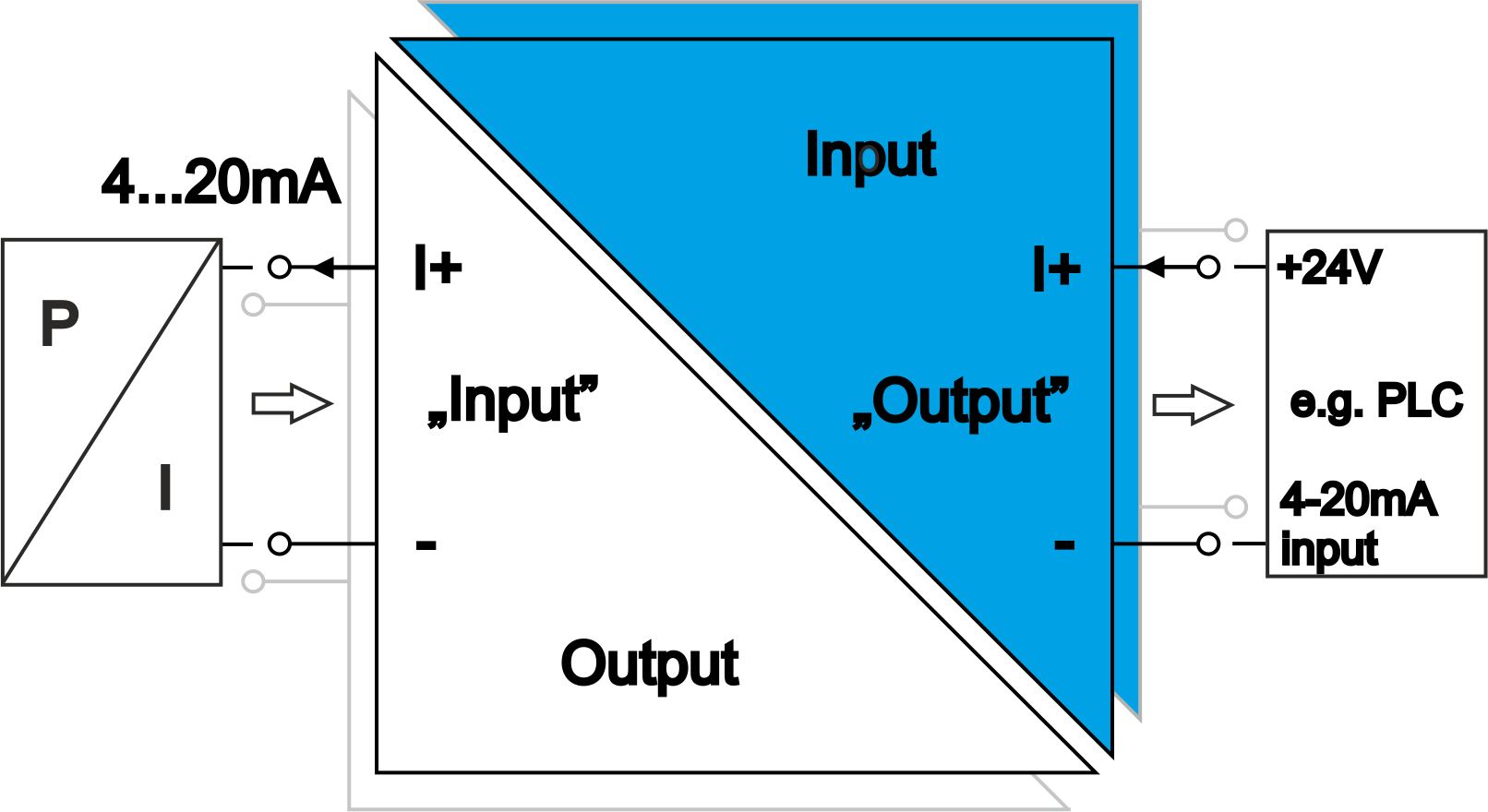

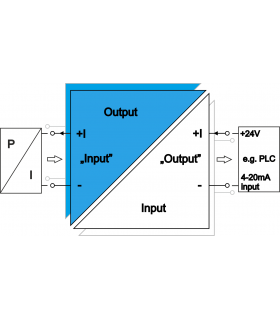

Non-intrinsically safe output working as "input" with a two-wire transmitter:

• For operation with a two-wire 4...20mA passive transmitter.

Intrinsically safe input working as "output" with active input of a system:

• Passive current signal I_IN=I_OUT for operation with an active intrinsically safe input of a system e.g. MacMat IV.

Power supply:

• Separator supplied from the intrinsically safe circuit.

Additional information:

• Explosion-proof construction designation:

  • I (M1) [Ex ia Ma] I;
  • II (1) G [Ex ia Ga] IIC;
  • II (1) D [Ex ia Da] IIIC.
• Input and output circuits galvanically separated from each other.

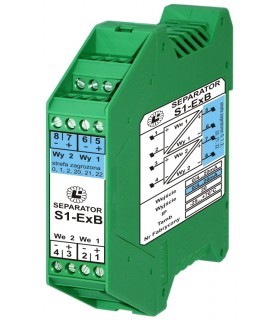

• 1 or 2 channels in one rail housing.
• More information in: DATASHEET (download).
