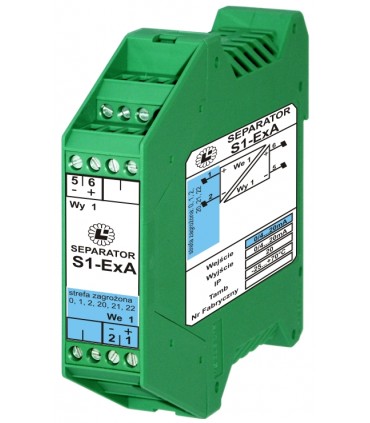

S1-ExA for flowmeter

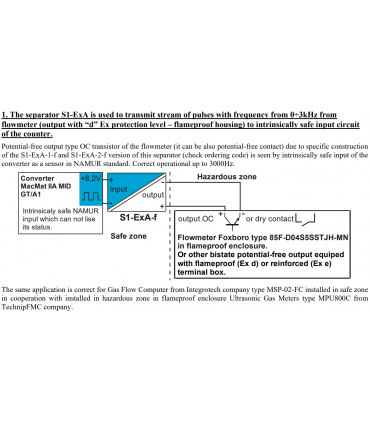

Application for pulser of flowmeter for converter e.g. MacMat, with intrinsically safe barrier Ex Atex

136.00 €

Description

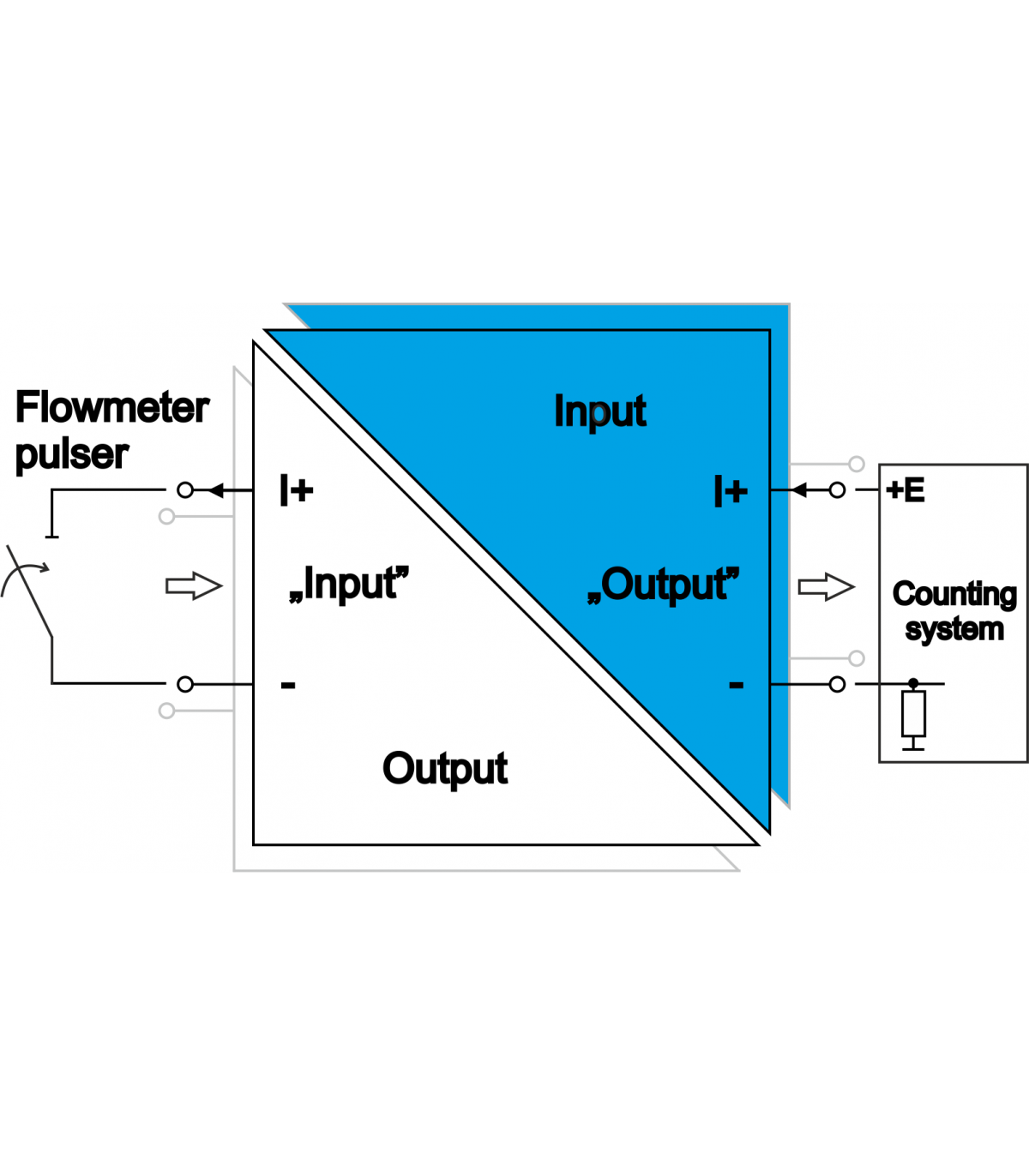

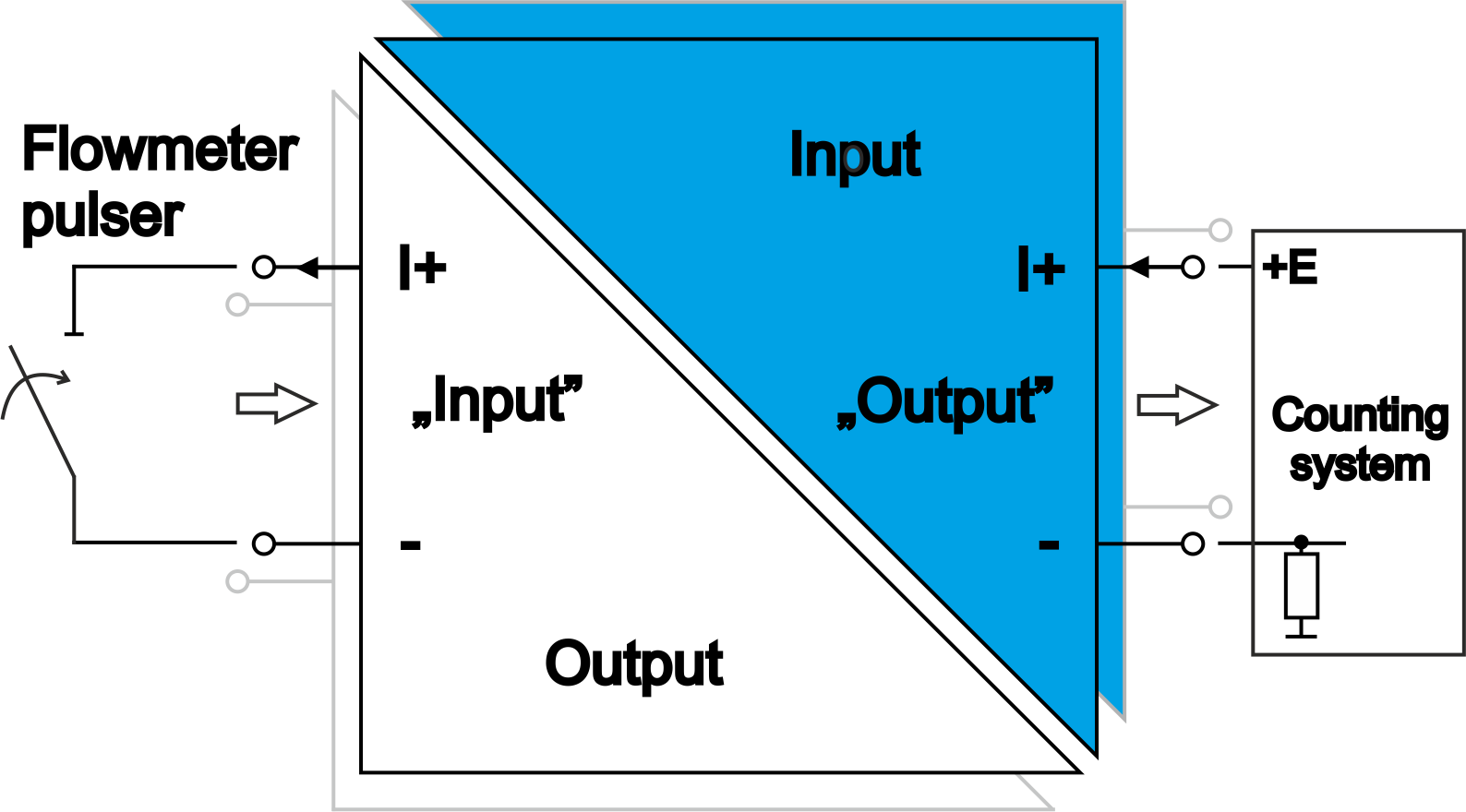

Non-intrinsically safe output working as "input" with flowmeter's pulser:

Potential-free contact, OC switch.

Intrinsically safe input working as "output" with counting system:

Passive bistate current signal, also NAMUR.

Power supply:

Separator supplied from the intrinsically safe input.

Additional information:

Explosion-proof construction designation:
- I(M1) [Ex ia] I;
- II(1) G [Ex ia] IIC;
- II (1) D [Ex iaD] 20.
Input and output circuits galvanically separated from each other.
1 or 2 channels in one rail housing.
More information in: DATASHEET (download).
