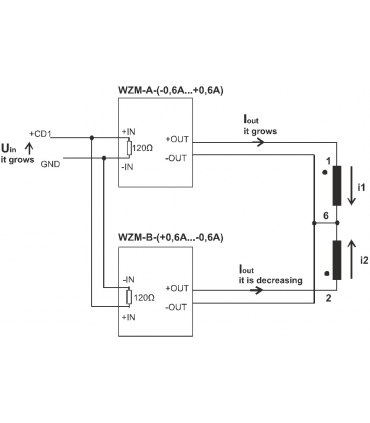

WZM-A-±0,6A, WZM-B-∓0,6A
Amplifier for valve, actuator, brake control

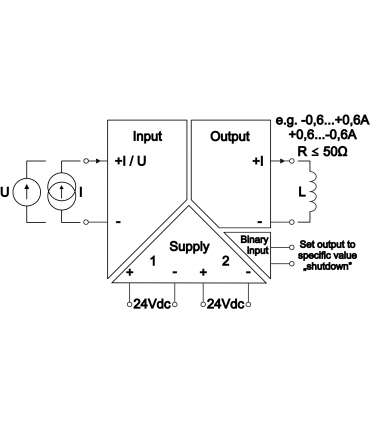

Input:
- Any standard signal as ordered (0...10V, 0/4...20mA etc., e.g. from EMERSON DCS OVATION system).
Outputs:
- WZM-A: -0,6A ... +0,6A (parameters modification possible if needed).
- WZM-B: +0,6A ... -0,6A (parameters modification possible if needed).
- Coil resistance: RLOAD ≤ 50Ω.
Power supply:
- 24VDC.
Additional information:

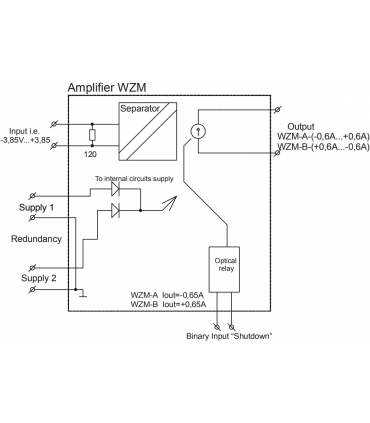

- Input, output and power supply circuits galvanically separated from each other.

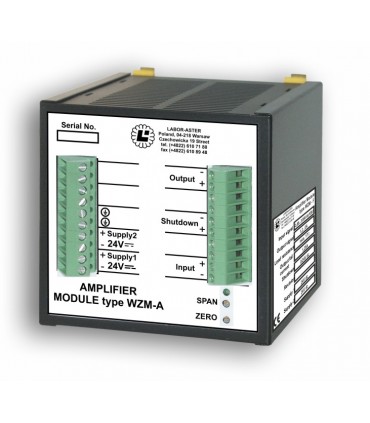

- 1 channel in rail housing.
- More information in: DATASHEET (download).
