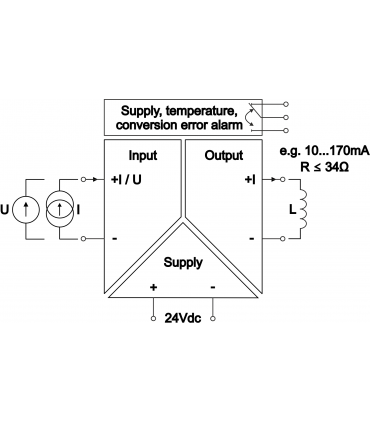

Input:

• Any standard signal as ordered (0...10V, 0/4...20mA etc., e.g. from EMERSON DCS OVATION system).

Output:

• Current source (parameters modification possible if needed):

  I = 10 ... 170mA.
• Coil resistance: R_LOAD ≤ 34Ω.

Power supply:

• 24V_DC.

Additional information:

• Can be used to control valves Linear Proportional Actuators type TM-25LP and TM-200LP firmy WOODWORD.
• Input, output and power supply circuits galvanically separated from each other.

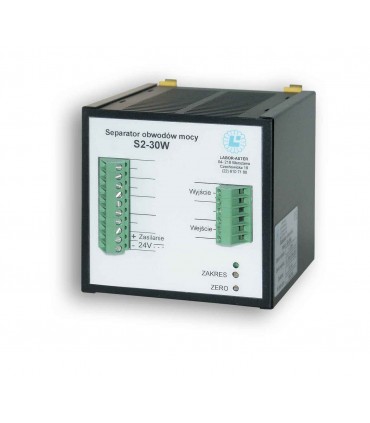

• 1 channel in rail housing.
• More information in: DATASHEET (download).
