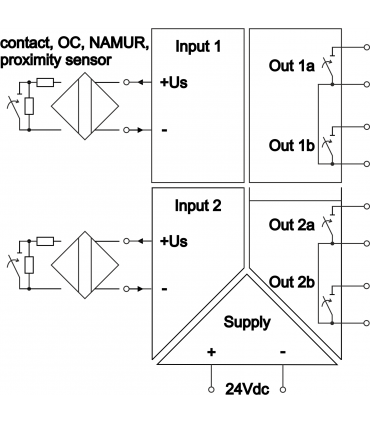

Inputs:

• Proximity sensor, NAMUR standard, closing non-potential contact, transistor switch NPN, PNP OC.
• Auxiliary voltage supply 8.2 V_DC.

Outputs:

• Relay or opto-relay contacts.
• Each channel has 2 outputs.
• Common minus "-" terminal for each pair of outputs.

Power supply:

• 24V_DC.

Additional information:

• Alarm indication of shorted- or opened-circuit in the input line (LED).
• Switcher-selected phase of output relays activation.
• Input, output and power supply circuits galvanically separated from each other.
• 1 or 2 channels in one rail housing.
• More information in: DATASHEET (download).
