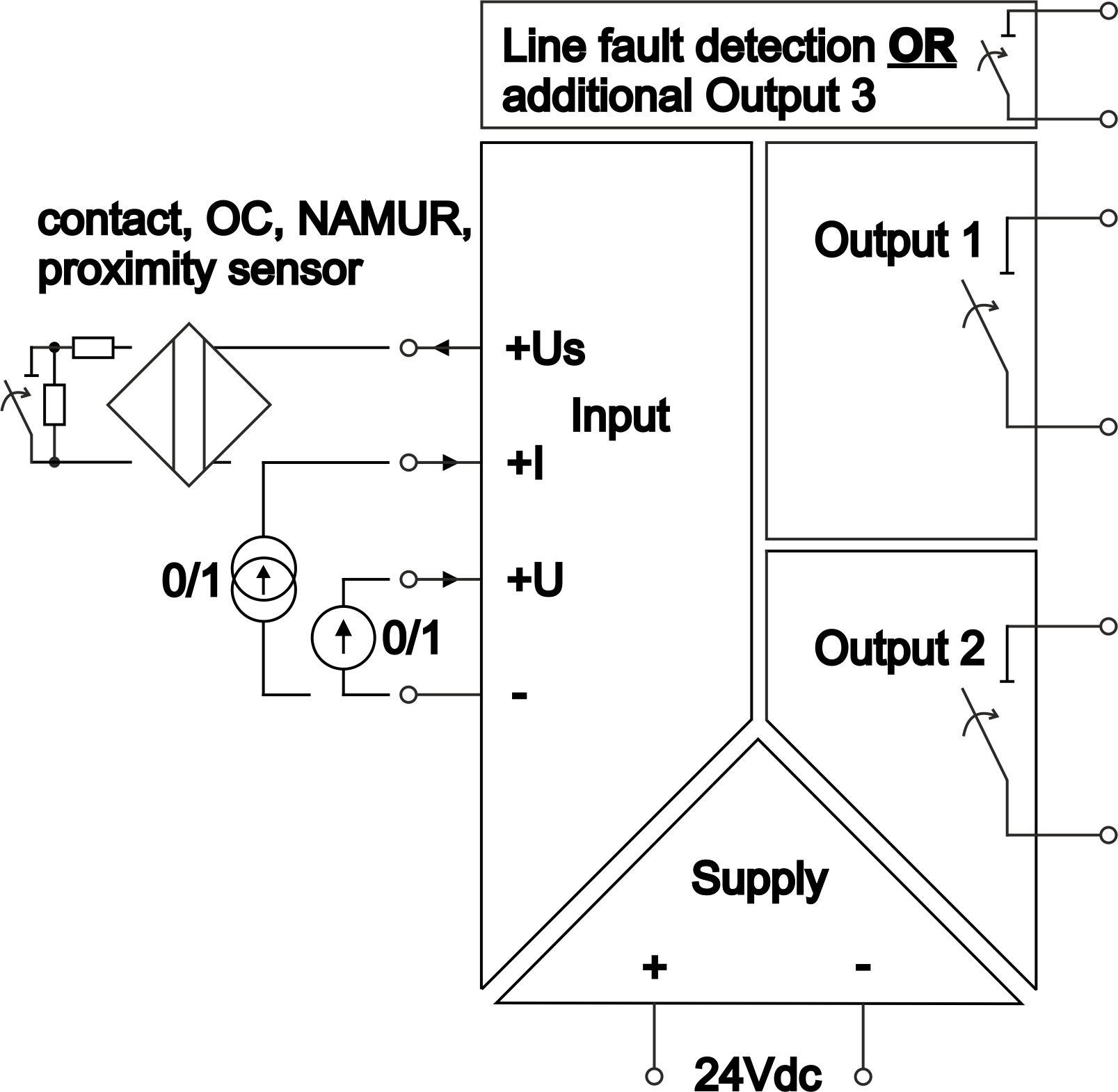

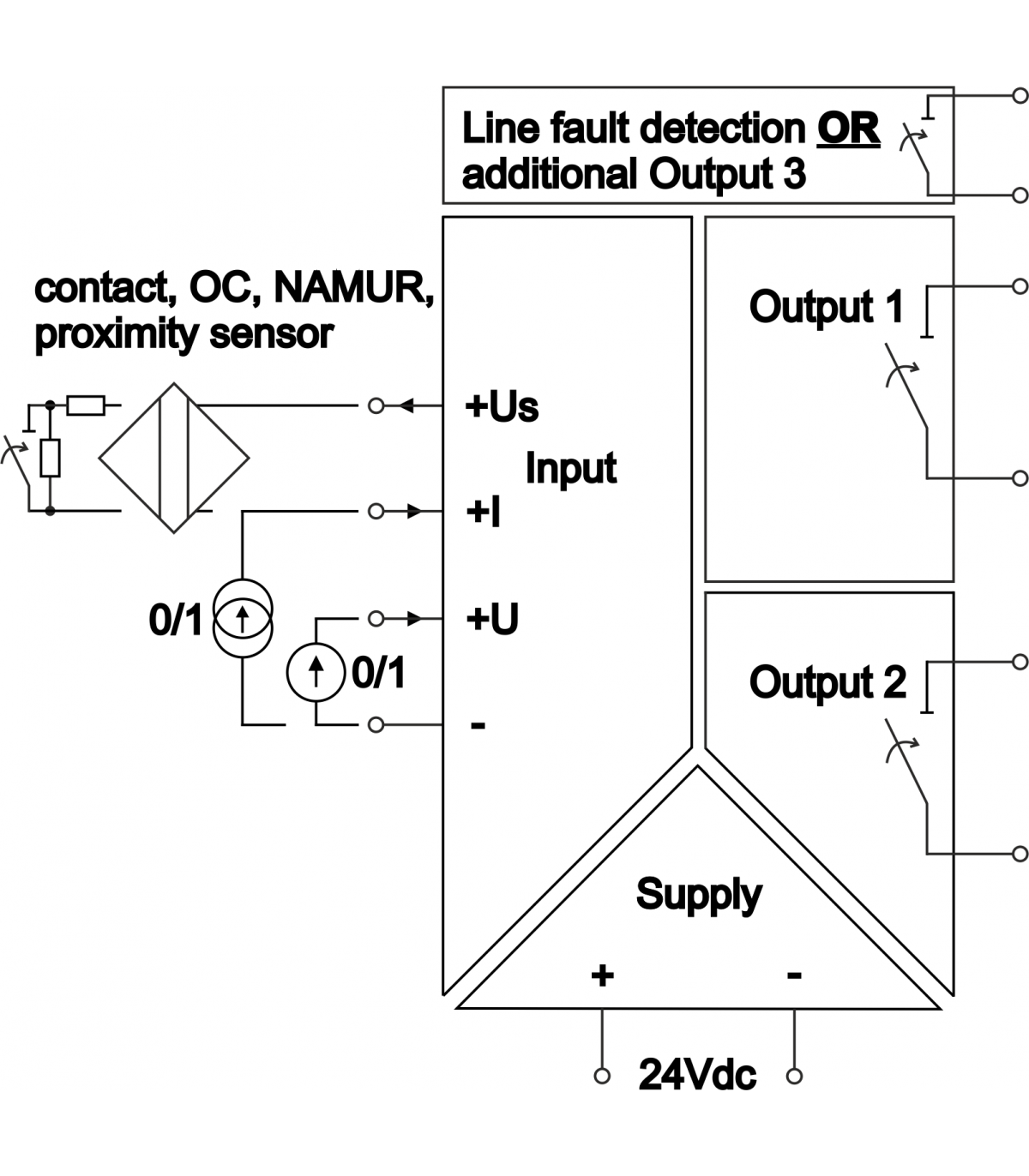

Input:

• Proximity NAMUR sensor, closing non-potential contact, transistor switch OC, Hall sensor, bistate voltage or current.

Outputs:

• Two or three relays or opto-relays.

Power supply:

• 24V_DC.

Additional information:

• Max frequency 800Hz (for opto-relay version).
• Alarm indication of shorted- or opened-circuit in the input line (opto-relay for two outputs, only LED for three-outputs).
• Switcher-selected phase of output relays.
• Input, output and power supply circuits galvanically separated from each other.
• 2 or 3 outputs in one rail housing.
• More information in: DATASHEET (download).
