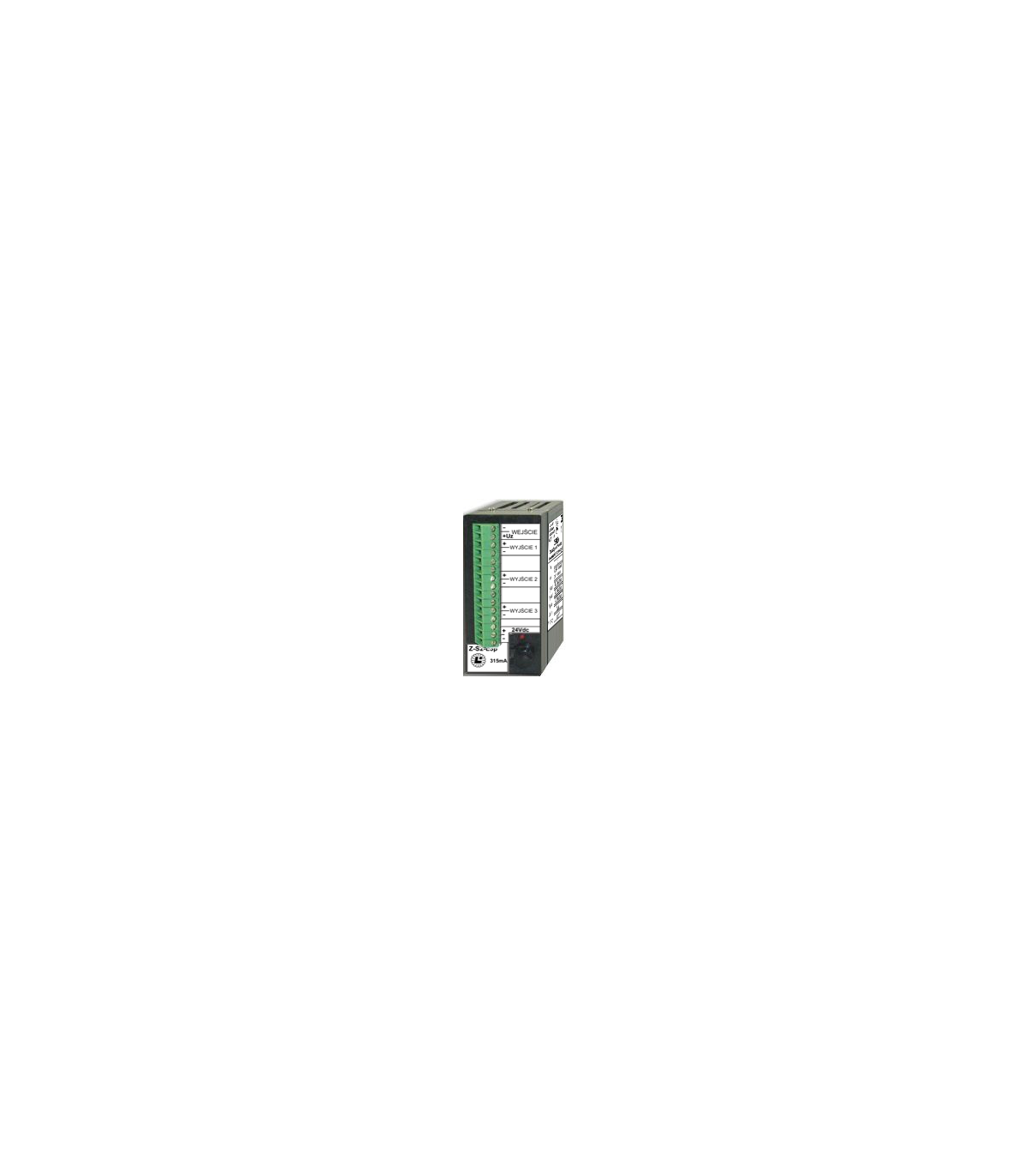

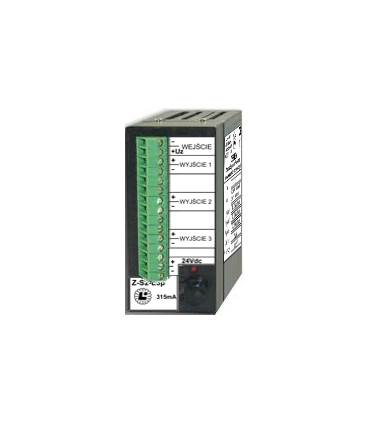

Z-S2-L3p

S2-L3p
S2-L4p 45mm

Supplier-duplicator-separator for two-wire transmitters, 3 outputs

293.00 €

Description

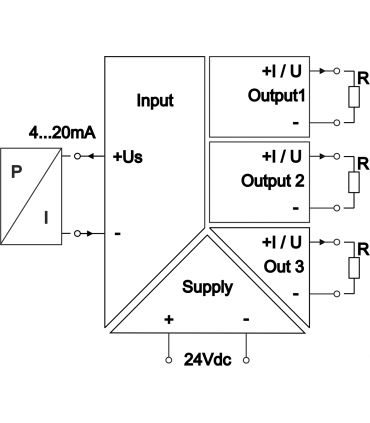

Input:

  • Supplying 4...20mA current loop for a two-wire transmitter.

Outputs:

  • Any standard signal as ordered (0...10V, 0/4...20mA etc.).

Power supply:

  • 24VDC.

Additional information:

  • Input, output and power supply circuits galvanically separated from each other.
  • 3 outputs in one rail housing.
  • More information in: DATASHEET (download).
