Converter-separator of analog signal to RS485 MODBUS RTU transmission

S2B-MOD-4

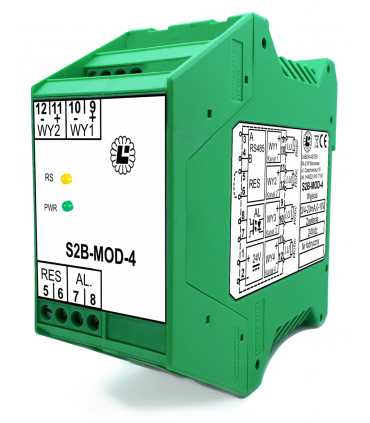

Separator-translator RS485 MODBUS RTU to four analog outputs

232.00 €

Description

Input:

  • RS485 MODBUS RTU, 50...115200 bd.
  • Up to 254 devices in one network.

Outputs:

  • Four independent standard analog outputs (from range 0...21mA, 0...11V) set by the user during configuration.

Power supply:

  • 24VDC.

Additional information:

  • Input, output and power supply circuits galvanically separated from each other.
  • 4 outputs in one rail housing.
  • More information in: DATASHEET (download).
