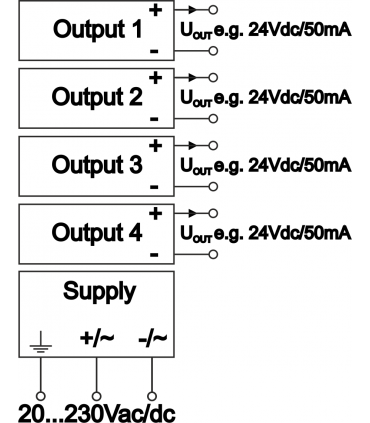

Outputs:

• Two outputs 24V_DC / 100mA or four outputs 24V_DC / 50mA.
• 100mA current limiter in each channel.

Power supply:

• Options:
  • - 20...80V_DC,
  • - 40...160V_DC,
  • - 80...350V_DC,
  • - 20...50V_AC, 50Hz,
  • - 40...100V_AC, 50Hz,
  • - 80...230V_AC, 50Hz.

Additional information:

• Possible output parameters modification if requested.
• Output and power supply circuits galvanically separated from each other.
• 2 or 4 outputs in one rail housing.
• More information in: DATASHEET (download).
