Indication:

• 4 LED digits with 12mm height with backlight.

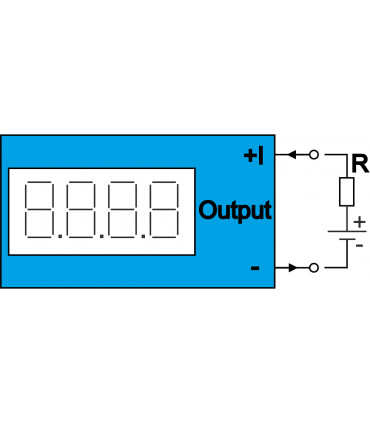

Intrinsically safe output:

• Current 3...21mA.

Power supply:

• Supplied from 4...20mA current loop.

Additional information:

• Setting from the front panel.
• 8 non-volatile memory cells for current settings.
• Explosion-proof construction designation:

  • II 3 G Ex ic IIC T6;
  • II (3) G [Ex ic] IIC;
  • II 3D Ex ic IIIA lub IIIB or IIIC T=85°C;
  • II (3)D [Ex ic] IIIA or IIIB or IIIC.
• 1 channel in board housing.
• More information in: DATASHEET (download).
