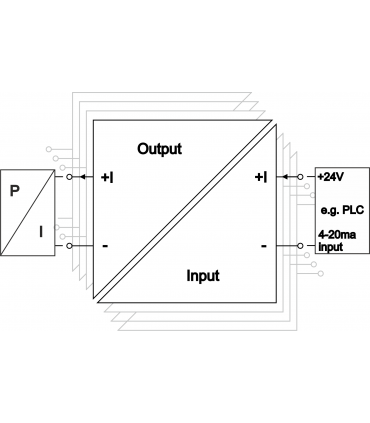

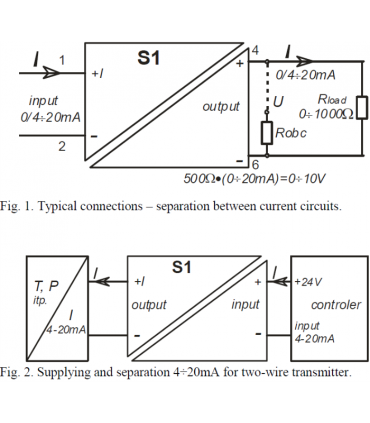

Output working as "input" with two-wire transmitter:

• Signal 4...20mA controlled from two-wire transmitter (separator supplies the transmitter).

Input working as "output" with PLC:

• Passive signal 4...20mA with value set by two-wire transmitter (current loop supplied from PLC).

Power supply:

• Separator supplied from the input.

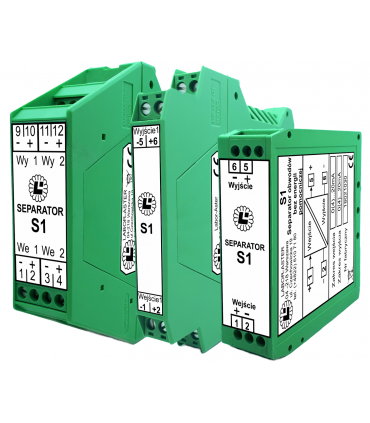

Versions:

• Type S1-A/1/2kV:
  • - 1 channel in housing A;
  • - separation 2kV/100pF;
  • - thin housing 12.5mm;
• Type S1-B/1/2kV:
  • - 1 channel in housing B;
  • - separation 2kV/10pF;
  • - housing 22.5mm;
• Type S1-C/1/4kV:
  • - 1 channel in housing C;
  • - separation 4kV/10pF;
  • - low housing 22.5mm;
• Type S1-A/2/2kV:
  • - 2 channels in housing A;
  • - separacja 2kV/100pF;
  • - thin housing 12.5mm;
• Type S1-B/2/2kV:
  • - 2 channels in housing B;
  • - separation 2kV/10pF;
  • - housing 22.5mm;
• Type S1-B/3/2kV:
  • - 3 channels in housing B;
  • - separation 2kV/100pF;
  • - housing 22.5mm;
• Type S1-B/4/2kV:
  • - 4 channels in housing B;
  • - separation 2kV/100pF;
  • - housing 22.5mm;

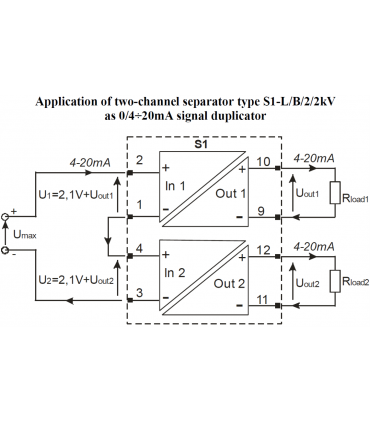

Additional information:

• Input and output circuits galvanically separated from each other.
• Up to 4 channels in one housing.
• More information in: DATASHEET (download).
